Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.475 — 1.5 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

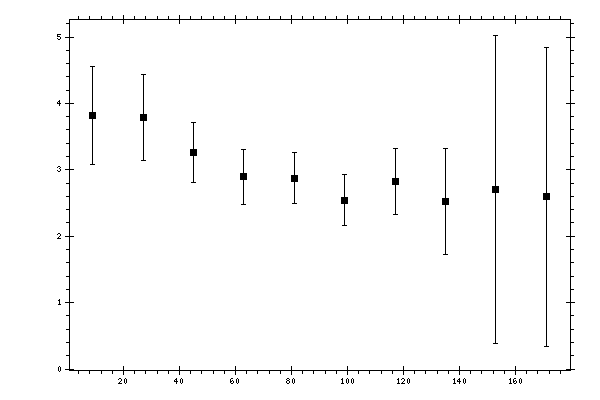

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.8196 | 0.3002 | 0.5257 | 0.7396 |
| 27 | 3.7886 | 0.1558 | 0.4645 | 0.6507 |
| 45 | 3.2663 | 0.1693 | 0.4178 | 0.4508 |
| 63 | 2.8924 | 0.1499 | 0.3881 | 0.416 |
| 81 | 2.8726 | 0.1107 | 0.3652 | 0.3816 |
| 99 | 2.5426 | 0.1823 | 0.3373 | 0.3835 |
| 117 | 2.8219 | 0.1914 | 0.4579 | 0.4963 |
| 135 | 2.5265 | 0.1862 | 0.7757 | 0.7977 |
| 153 | 2.7028 | 0.0408 | 1.6396 | 2.3196 |
| 171 | 2.5927 | 0.005 | 1.5901 | 2.2522 |
