Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.5 — 1.525 GeV | |
| Ebeam : | 5.754 GeV |
|

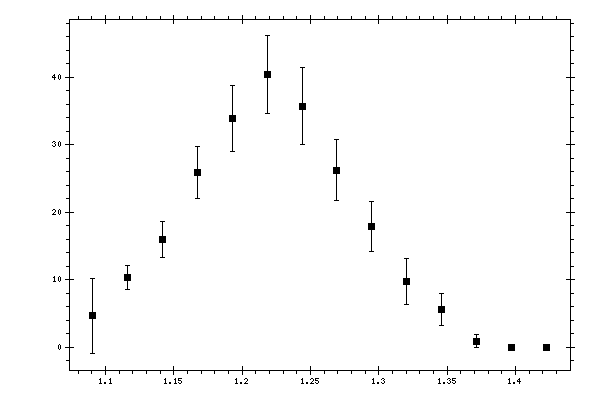

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.090613 | 4.6071 | 0.4542 | 0.8021 | 5.5129 |
| 1.116155 | 10.311 | 0.6906 | 1.6912 | 1.8268 |
| 1.141697 | 15.9638 | 0.8889 | 2.4823 | 2.6367 |
| 1.167239 | 25.9106 | 1.2117 | 3.6776 | 3.8721 |
| 1.192781 | 33.8772 | 1.4784 | 4.6866 | 4.9142 |
| 1.218323 | 40.4006 | 1.4977 | 5.5266 | 5.726 |
| 1.243865 | 35.7233 | 1.3593 | 5.5605 | 5.7242 |
| 1.269407 | 26.239 | 1.2325 | 4.3622 | 4.533 |
| 1.294949 | 17.8732 | 0.9311 | 3.5973 | 3.7159 |
| 1.320491 | 9.6583 | 0.6849 | 2.4163 | 3.4162 |
| 1.346033 | 5.6188 | 0.5361 | 1.6806 | 2.3806 |
| 1.371575 | 0.8441 | 0.0796 | 0.3915 | 0.9628 |
| 1.397117 | 0.0001 | 0 | 0.0001 | 0.0001 |
| 1.422659 | 0 | 0 | 0 | 0 |
