Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.5 — 1.525 GeV | |
| Ebeam : | 5.754 GeV |
|

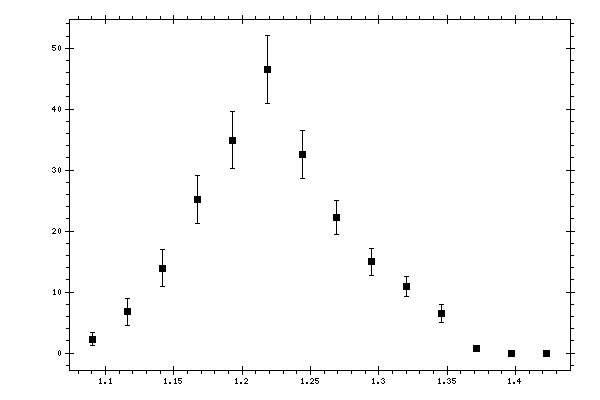

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.090613 | 2.2964 | 0.1307 | 1.0658 | 1.0737 |
| 1.116155 | 6.7871 | 0.4227 | 2.2054 | 2.2455 |
| 1.141697 | 13.9265 | 0.8698 | 2.9117 | 3.0388 |
| 1.167239 | 25.2311 | 1.2207 | 3.767 | 3.9599 |
| 1.192781 | 34.8896 | 1.5074 | 4.424 | 4.6738 |
| 1.218323 | 46.4448 | 1.9564 | 5.2233 | 5.5777 |
| 1.243865 | 32.5682 | 1.4071 | 3.6753 | 3.9354 |
| 1.269407 | 22.2796 | 1.064 | 2.6131 | 2.8215 |
| 1.294949 | 14.9783 | 1.2369 | 1.8421 | 2.2188 |
| 1.320491 | 10.945 | 0.8218 | 1.4351 | 1.6537 |
| 1.346033 | 6.4568 | 0.5875 | 1.0232 | 1.4501 |
| 1.371575 | 0.7624 | 0.0853 | 0.321 | 0.457 |
| 1.397117 | 0.0001 | 0.0036 | 0 | 0.0036 |
| 1.422659 | 0 | 0.0012 | 0 | 0 |
