Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.5 — 1.525 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

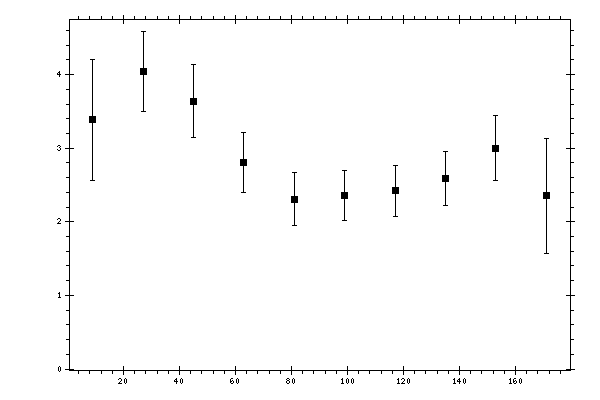

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.3846 | 0.2514 | 0.7876 | 0.8268 |
| 27 | 4.0413 | 0.2156 | 0.5049 | 0.549 |
| 45 | 3.637 | 0.1608 | 0.4691 | 0.4959 |
| 63 | 2.8109 | 0.1309 | 0.3864 | 0.408 |
| 81 | 2.3094 | 0.1405 | 0.3274 | 0.3563 |
| 99 | 2.354 | 0.1076 | 0.3185 | 0.3362 |
| 117 | 2.4183 | 0.1052 | 0.326 | 0.3426 |
| 135 | 2.5877 | 0.1178 | 0.3495 | 0.3689 |
| 153 | 3.002 | 0.1625 | 0.4141 | 0.4448 |
| 171 | 2.3509 | 0.4674 | 0.6291 | 0.7838 |
