Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.5 — 1.525 GeV | |
| Ebeam : | 5.754 GeV |
|

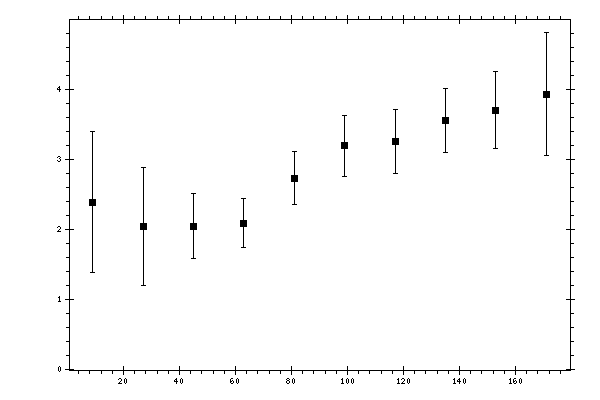

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.3907 | 0.1646 | 0.9989 | 1.0123 |
| 27 | 2.038 | 0.1153 | 0.5951 | 0.8418 |
| 45 | 2.0451 | 0.1163 | 0.4482 | 0.463 |
| 63 | 2.0889 | 0.1149 | 0.3292 | 0.3486 |
| 81 | 2.7324 | 0.1532 | 0.3494 | 0.3816 |
| 99 | 3.1961 | 0.1382 | 0.413 | 0.4355 |
| 117 | 3.2588 | 0.1351 | 0.4437 | 0.4638 |
| 135 | 3.5567 | 0.171 | 0.4222 | 0.4555 |
| 153 | 3.7054 | 0.169 | 0.3897 | 0.5516 |
| 171 | 3.9362 | 0.3006 | 0.6241 | 0.8802 |
