Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.525 — 1.55 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

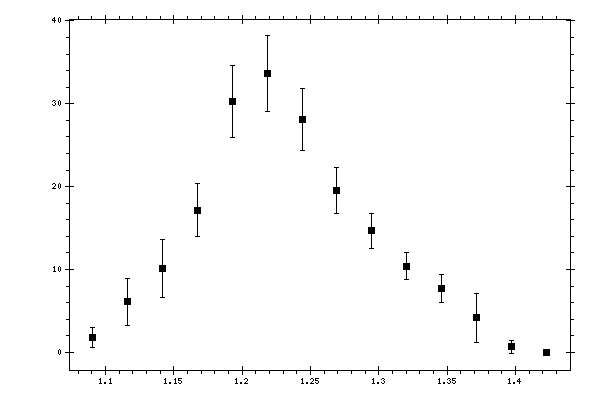

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.090613 | 1.7508 | 0.1053 | 0.8458 | 1.201 |
| 1.116155 | 6.1309 | 0.4383 | 1.9988 | 2.8264 |
| 1.141697 | 10.1144 | 0.7969 | 2.5004 | 3.5407 |
| 1.167239 | 17.1749 | 0.9143 | 3.1151 | 3.2466 |
| 1.192781 | 30.2476 | 1.2482 | 4.1943 | 4.3761 |
| 1.218323 | 33.6152 | 1.4929 | 4.3283 | 4.5785 |
| 1.243865 | 28.1368 | 1.2117 | 3.5345 | 3.7365 |
| 1.269407 | 19.5268 | 1.0086 | 2.5491 | 2.7414 |
| 1.294949 | 14.6724 | 0.8446 | 1.9658 | 2.1396 |
| 1.320491 | 10.3737 | 0.6767 | 1.4765 | 1.6242 |
| 1.346033 | 7.6739 | 0.8735 | 1.2082 | 1.7101 |
| 1.371575 | 4.1897 | 0.471 | 0.8428 | 2.9634 |
| 1.397117 | 0.7029 | 0.0724 | 0.3123 | 0.7884 |
| 1.422659 | 0 | 0.0028 | 0 | 0 |
