Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: σ, mcb
Cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.4 — 2 GeV | |
| Ebeam : | 5.754 GeV |
|

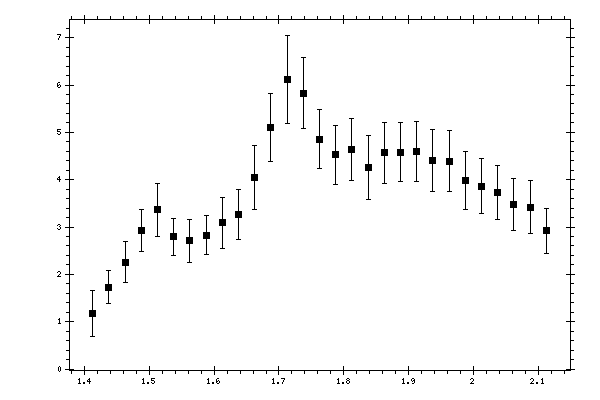

Observable quantity measured (Y axis): σ, mcb
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
W,
GeV |
σ,
mcb |
Total error,
mcb |
|---|---|---|
| 1.4125 | 1.1631 | 0.4863 |
| 1.4375 | 1.7323 | 0.3435 |
| 1.4625 | 2.2526 | 0.4352 |
| 1.4875 | 2.9274 | 0.4424 |
| 1.5125 | 3.3642 | 0.5547 |
| 1.5375 | 2.7903 | 0.3987 |
| 1.5625 | 2.7086 | 0.4584 |
| 1.5875 | 2.8308 | 0.4101 |
| 1.6125 | 3.0849 | 0.5335 |
| 1.6375 | 3.2675 | 0.5352 |
| 1.6625 | 4.0406 | 0.6765 |
| 1.6875 | 5.0996 | 0.7189 |
| 1.7125 | 6.1227 | 0.932 |
| 1.7375 | 5.8237 | 0.7519 |
| 1.7625 | 4.8535 | 0.6227 |
| 1.7875 | 4.5233 | 0.6261 |
| 1.8125 | 4.6354 | 0.6513 |
| 1.8375 | 4.2547 | 0.6704 |
| 1.8625 | 4.5696 | 0.6411 |
| 1.8875 | 4.583 | 0.6282 |
| 1.9125 | 4.5952 | 0.63 |
| 1.9375 | 4.4101 | 0.6495 |
| 1.9625 | 4.389 | 0.6397 |
| 1.9875 | 3.9777 | 0.6164 |
| 2.0125 | 3.8637 | 0.5773 |
| 2.0375 | 3.7321 | 0.5671 |
| 2.0625 | 3.4698 | 0.5472 |
| 2.0875 | 3.4173 | 0.5577 |
| 2.1125 | 2.9182 | 0.4726 |
