Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.525 — 1.55 GeV | |
| Ebeam : | 5.754 GeV |
|

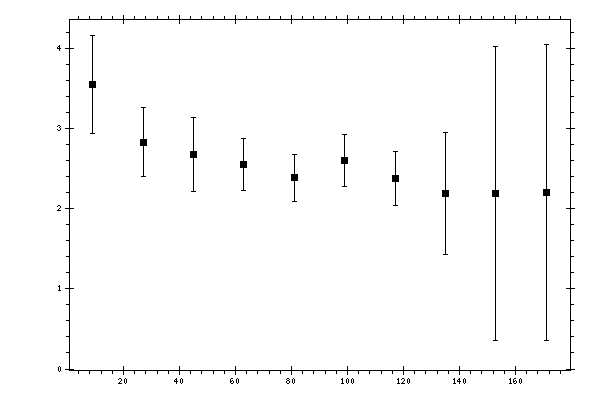

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.5545 | 0.2457 | 0.4333 | 0.6145 |
| 27 | 2.8321 | 0.129 | 0.3008 | 0.4312 |
| 45 | 2.681 | 0.1606 | 0.329 | 0.4594 |
| 63 | 2.5525 | 0.1129 | 0.3077 | 0.3277 |
| 81 | 2.3866 | 0.0895 | 0.2761 | 0.2902 |
| 99 | 2.6078 | 0.1269 | 0.2976 | 0.3235 |
| 117 | 2.3797 | 0.1154 | 0.3199 | 0.3401 |
| 135 | 2.1933 | 0.1388 | 0.5357 | 0.7598 |
| 153 | 2.1929 | 0.0066 | 1.298 | 1.8418 |
| 171 | 2.2076 | 0.0039 | 1.3067 | 1.846 |
