Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.525 — 1.55 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

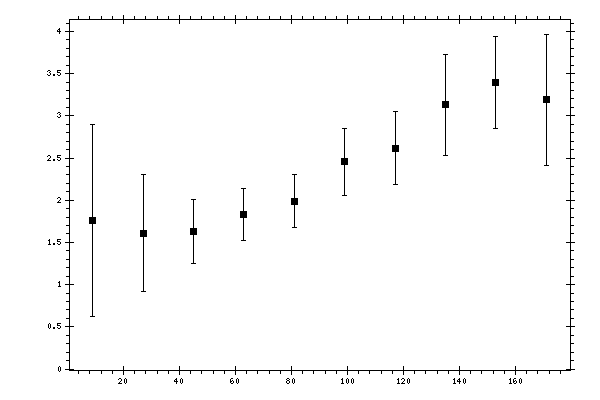

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.7651 | 0.0911 | 0.8069 | 1.1371 |
| 27 | 1.6104 | 0.094 | 0.4916 | 0.6969 |
| 45 | 1.6242 | 0.1004 | 0.3653 | 0.3789 |
| 63 | 1.8276 | 0.1006 | 0.2898 | 0.3068 |
| 81 | 1.9866 | 0.0968 | 0.2982 | 0.3135 |
| 99 | 2.4542 | 0.1189 | 0.3816 | 0.3997 |
| 117 | 2.6188 | 0.1231 | 0.4201 | 0.4377 |
| 135 | 3.1294 | 0.1208 | 0.4282 | 0.6003 |
| 153 | 3.3983 | 0.1456 | 0.3858 | 0.5454 |
| 171 | 3.1886 | 0.2215 | 0.5515 | 0.78 |
