Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.55 — 1.575 GeV | |
| Ebeam : | 5.754 GeV |
|

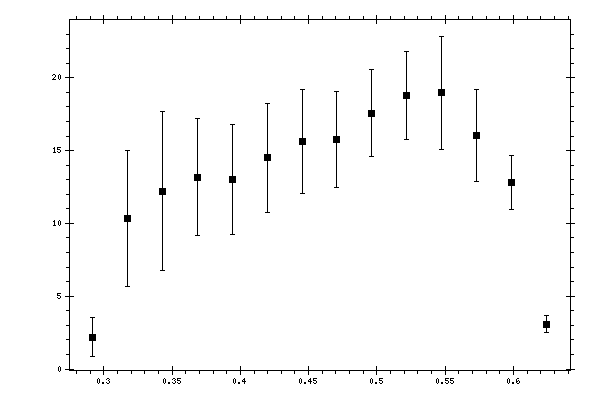

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 0.291911 | 2.1949 | 0.1648 | 0.9495 | 1.3537 |
| 0.317453 | 10.3337 | 0.7656 | 3.3192 | 4.6915 |
| 0.342995 | 12.2165 | 0.7697 | 3.847 | 5.4424 |
| 0.368537 | 13.1862 | 0.7201 | 3.9271 | 3.9926 |
| 0.394079 | 13.0323 | 0.7449 | 3.709 | 3.783 |
| 0.419621 | 14.5124 | 0.9408 | 3.6365 | 3.7563 |
| 0.445163 | 15.6238 | 0.9529 | 3.4447 | 3.5741 |
| 0.470705 | 15.78 | 1.5111 | 2.9459 | 3.3109 |
| 0.496247 | 17.5833 | 0.8837 | 2.8743 | 3.007 |
| 0.521789 | 18.7681 | 0.9902 | 2.87 | 3.036 |
| 0.547331 | 18.9888 | 0.8322 | 2.7472 | 3.8816 |
| 0.572873 | 16.0392 | 0.7624 | 2.2473 | 3.1747 |
| 0.598415 | 12.7875 | 0.6414 | 1.7461 | 1.8602 |
| 0.623957 | 3.0767 | 0.2794 | 0.5267 | 0.5962 |
