Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.55 — 1.575 GeV | |
| Ebeam : | 5.754 GeV |
|

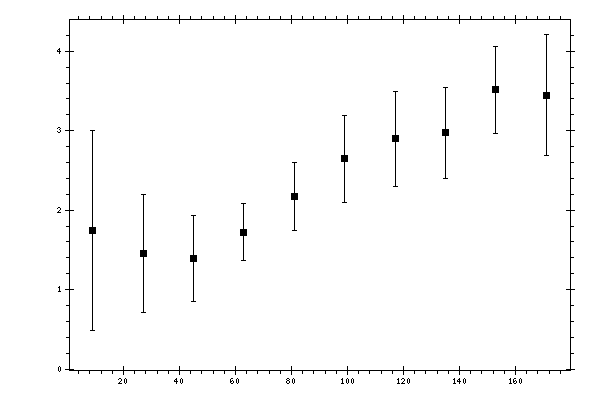

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.7451 | 0.0989 | 0.8859 | 1.2621 |
| 27 | 1.4551 | 0.0843 | 0.5263 | 0.7429 |
| 45 | 1.3903 | 0.1566 | 0.3806 | 0.5425 |
| 63 | 1.7238 | 0.0884 | 0.3443 | 0.3554 |
| 81 | 2.1743 | 0.1012 | 0.4175 | 0.4296 |
| 99 | 2.6477 | 0.1117 | 0.535 | 0.5466 |
| 117 | 2.8961 | 0.1192 | 0.584 | 0.5961 |
| 135 | 2.9716 | 0.1149 | 0.562 | 0.5736 |
| 153 | 3.515 | 0.1447 | 0.5314 | 0.5507 |
| 171 | 3.4442 | 0.2341 | 0.726 | 0.7628 |
