Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.575 — 1.6 GeV | |
| Ebeam : | 5.754 GeV |
|

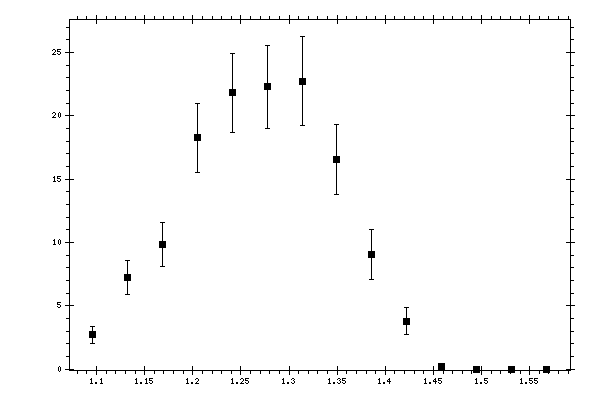

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.09597 | 2.6934 | 0.267 | 0.5828 | 0.641 |
| 1.132227 | 7.2129 | 0.5203 | 1.2189 | 1.3253 |
| 1.168483 | 9.8248 | 0.5172 | 1.6631 | 1.7416 |
| 1.204739 | 18.2458 | 0.8142 | 2.5793 | 2.7048 |
| 1.240995 | 21.8024 | 0.9844 | 2.9658 | 3.1249 |
| 1.277252 | 22.2729 | 0.9795 | 3.1025 | 3.2534 |
| 1.313508 | 22.7316 | 1.108 | 3.3377 | 3.5168 |
| 1.349764 | 16.5209 | 0.9051 | 2.6146 | 2.7668 |
| 1.38602 | 9.0497 | 0.5757 | 1.9008 | 1.9861 |
| 1.422277 | 3.7711 | 0.333 | 1.0298 | 1.0823 |
| 1.458533 | 0.2143 | 0.019 | 0.1141 | 0.1157 |
| 1.494789 | 0 | 0 | 0 | 0 |
| 1.531046 | 0 | 0 | 0 | 0 |
| 1.567302 | 0 | 0 | 0 | 0 |
