Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.6 — 1.625 GeV | |
| Ebeam : | 5.754 GeV |
|

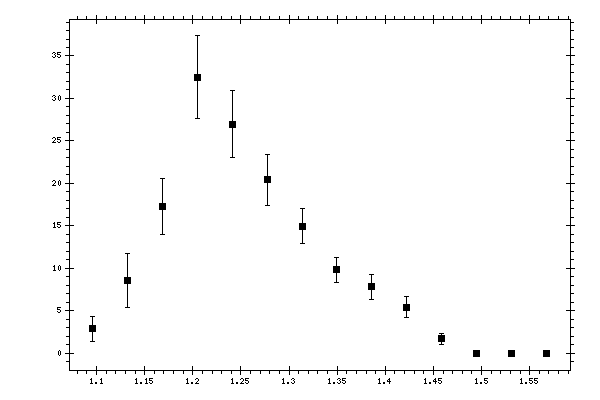

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.09597 | 2.8457 | 0.2062 | 1.0829 | 1.5167 |
| 1.132227 | 8.516 | 0.6158 | 2.2588 | 3.1923 |
| 1.168483 | 17.2489 | 0.9033 | 3.1669 | 3.2932 |
| 1.204739 | 32.4948 | 1.5788 | 4.6132 | 4.8759 |
| 1.240995 | 26.9667 | 1.2978 | 3.7092 | 3.9297 |
| 1.277252 | 20.4028 | 1.4032 | 2.6352 | 2.9856 |
| 1.313508 | 14.9741 | 0.7542 | 1.9334 | 2.0753 |
| 1.349764 | 9.8139 | 0.6371 | 1.3199 | 1.4656 |
| 1.38602 | 7.8164 | 0.5656 | 1.0577 | 1.4943 |
| 1.422277 | 5.4226 | 0.7469 | 0.8075 | 1.2143 |
| 1.458533 | 1.7124 | 0.2251 | 0.4518 | 0.6413 |
| 1.494789 | 0.0136 | 0.0111 | 0.0082 | 0.0138 |
| 1.531046 | 0 | 0.001 | 0 | 0 |
| 1.567302 | 0 | 0.0007 | 0 | 0 |
