Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.6 — 1.625 GeV | |
| Ebeam : | 5.754 GeV |
|

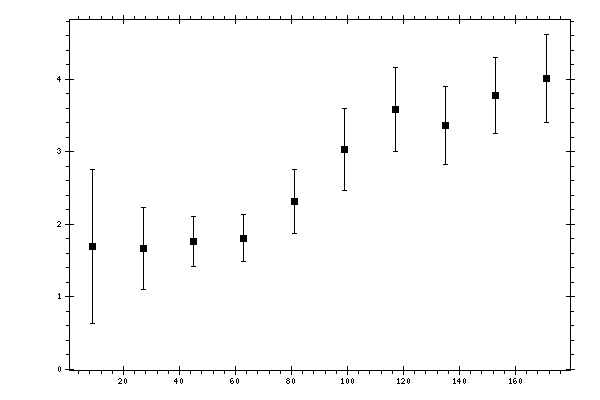

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.6891 | 0.1211 | 0.7545 | 1.0646 |
| 27 | 1.6612 | 0.1413 | 0.4042 | 0.5696 |
| 45 | 1.7631 | 0.1122 | 0.3235 | 0.3424 |
| 63 | 1.8081 | 0.1026 | 0.303 | 0.3199 |
| 81 | 2.3103 | 0.12 | 0.4247 | 0.4413 |
| 99 | 3.0275 | 0.2433 | 0.5136 | 0.5683 |
| 117 | 3.5826 | 0.192 | 0.5439 | 0.5768 |
| 135 | 3.3647 | 0.1561 | 0.5163 | 0.5394 |
| 153 | 3.7824 | 0.1733 | 0.4974 | 0.5267 |
| 171 | 4.0099 | 0.2567 | 0.5546 | 0.6111 |
