Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.65 — 1.675 GeV | |
| Ebeam : | 5.754 GeV |
|

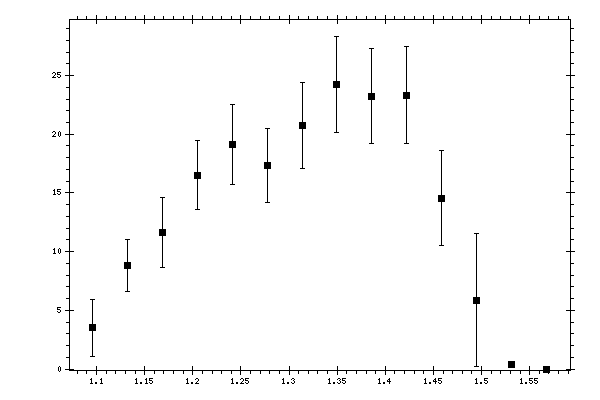

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.09597 | 3.506 | 0.3125 | 0.7835 | 2.4416 |
| 1.132227 | 8.8243 | 0.7975 | 1.5827 | 2.2346 |
| 1.168483 | 11.6358 | 0.6722 | 2.124 | 3.0025 |
| 1.204739 | 16.494 | 0.7839 | 2.8331 | 2.9395 |
| 1.240995 | 19.1259 | 1.0903 | 3.2097 | 3.3898 |
| 1.277252 | 17.3371 | 0.7391 | 3.036 | 3.1247 |
| 1.313508 | 20.7628 | 0.8357 | 3.5655 | 3.6621 |
| 1.349764 | 24.2308 | 1.0292 | 3.9566 | 4.0882 |
| 1.38602 | 23.2202 | 1.1251 | 3.8854 | 4.045 |
| 1.422277 | 23.3439 | 1.3675 | 3.8613 | 4.0963 |
| 1.458533 | 14.549 | 1.0191 | 2.8615 | 4.0522 |
| 1.494789 | 5.8773 | 0.4852 | 1.4389 | 5.6708 |
| 1.531046 | 0.3815 | 0.0599 | 0.1757 | 0.1856 |
| 1.567302 | 0 | 0 | 0 | 0 |
