Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.65 — 1.675 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

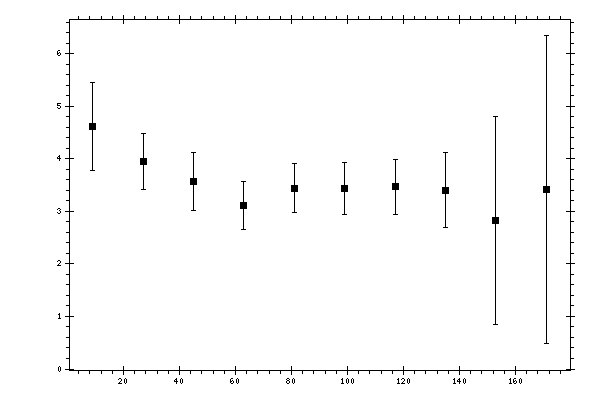

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 4.6196 | 0.2882 | 0.5982 | 0.846 |
| 27 | 3.954 | 0.1876 | 0.4976 | 0.5318 |
| 45 | 3.5774 | 0.2068 | 0.5133 | 0.5534 |
| 63 | 3.113 | 0.1529 | 0.4231 | 0.4499 |
| 81 | 3.4461 | 0.1342 | 0.4557 | 0.4751 |
| 99 | 3.4366 | 0.1595 | 0.4617 | 0.4885 |
| 117 | 3.4689 | 0.1386 | 0.5015 | 0.5203 |
| 135 | 3.4052 | 0.1961 | 0.6891 | 0.7165 |
| 153 | 2.8254 | 0.1438 | 1.4017 | 1.9838 |
| 171 | 3.4198 | 0.0044 | 2.0742 | 2.9335 |
