Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.675 — 1.7 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

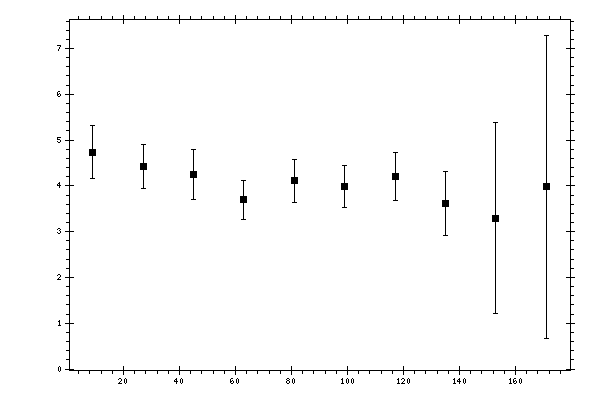

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 4.7323 | 0.2536 | 0.5186 | 0.5773 |
| 27 | 4.4261 | 0.1567 | 0.4508 | 0.4773 |
| 45 | 4.2531 | 0.2337 | 0.4919 | 0.5446 |
| 63 | 3.6989 | 0.1399 | 0.4032 | 0.4268 |
| 81 | 4.1131 | 0.1492 | 0.4463 | 0.4706 |
| 99 | 3.9849 | 0.1302 | 0.4377 | 0.4567 |
| 117 | 4.2148 | 0.1791 | 0.4925 | 0.5241 |
| 135 | 3.6113 | 0.2396 | 0.6578 | 0.7001 |
| 153 | 3.2969 | 0.2001 | 1.4823 | 2.0947 |
| 171 | 3.9823 | 0.0049 | 2.3351 | 3.3093 |
