Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.675 — 1.7 GeV | |
| Ebeam : | 5.754 GeV |
|

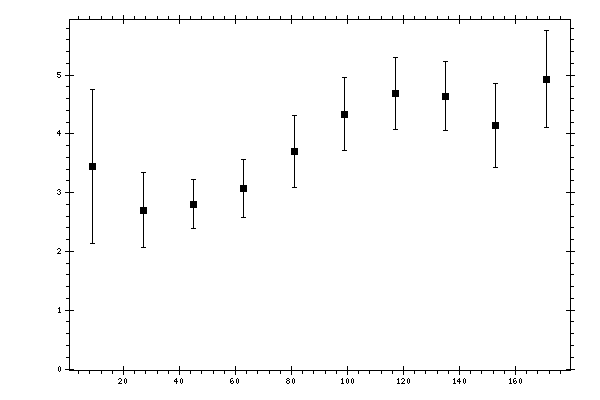

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.4471 | 0.2208 | 0.9301 | 1.3158 |
| 27 | 2.7021 | 0.134 | 0.4525 | 0.641 |
| 45 | 2.8047 | 0.1316 | 0.3941 | 0.4155 |
| 63 | 3.0702 | 0.1216 | 0.4721 | 0.4875 |
| 81 | 3.6994 | 0.171 | 0.5855 | 0.6099 |
| 99 | 4.3377 | 0.1901 | 0.5987 | 0.6281 |
| 117 | 4.6852 | 0.1744 | 0.5824 | 0.608 |
| 135 | 4.6414 | 0.1796 | 0.5641 | 0.592 |
| 153 | 4.1435 | 0.2153 | 0.4991 | 0.7102 |
| 171 | 4.9322 | 0.2737 | 0.5862 | 0.8203 |
