Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.7 — 1.725 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

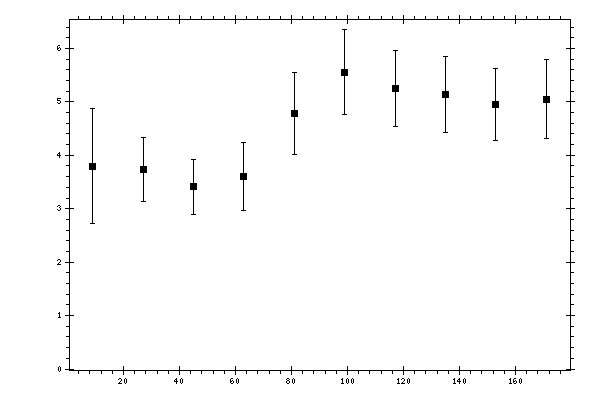

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.7981 | 0.2256 | 1.052 | 1.0759 |
| 27 | 3.7367 | 0.1668 | 0.5802 | 0.6037 |
| 45 | 3.4068 | 0.1297 | 0.4949 | 0.5116 |
| 63 | 3.6044 | 0.1533 | 0.6134 | 0.6323 |
| 81 | 4.7776 | 0.2244 | 0.7356 | 0.7691 |
| 99 | 5.5549 | 0.2094 | 0.7682 | 0.7962 |
| 117 | 5.2495 | 0.1948 | 0.6877 | 0.7148 |
| 135 | 5.132 | 0.2174 | 0.6742 | 0.7084 |
| 153 | 4.9531 | 0.2461 | 0.6348 | 0.6808 |
| 171 | 5.0456 | 0.3078 | 0.6733 | 0.7403 |
