Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.725 — 1.75 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

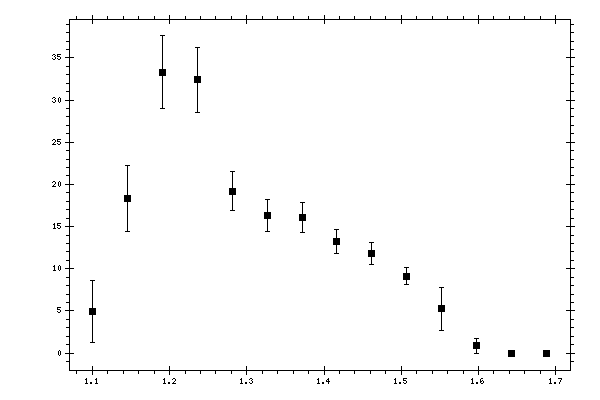

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.100435 | 4.9408 | 0.5148 | 1.1533 | 3.6992 |
| 1.145619 | 18.3052 | 0.9834 | 2.7467 | 3.8892 |
| 1.190804 | 33.3242 | 1.5357 | 4.0089 | 4.293 |
| 1.235989 | 32.431 | 1.3808 | 3.6102 | 3.8653 |
| 1.281174 | 19.1942 | 0.8698 | 2.1229 | 2.2942 |
| 1.326359 | 16.3115 | 0.7166 | 1.7 | 1.8448 |
| 1.371544 | 16.0782 | 0.7609 | 1.5735 | 1.7479 |
| 1.416728 | 13.1949 | 0.6057 | 1.2644 | 1.402 |
| 1.461913 | 11.7521 | 0.6955 | 1.102 | 1.3032 |
| 1.507098 | 9.1269 | 0.5229 | 0.8723 | 1.017 |
| 1.552283 | 5.2654 | 0.4744 | 0.537 | 2.532 |
| 1.597468 | 0.8678 | 0.1206 | 0.1661 | 0.8765 |
| 1.642653 | 0 | 0.0013 | 0 | 0 |
| 1.687837 | 0 | 0.0005 | 0 | 0 |
