Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.725 — 1.75 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

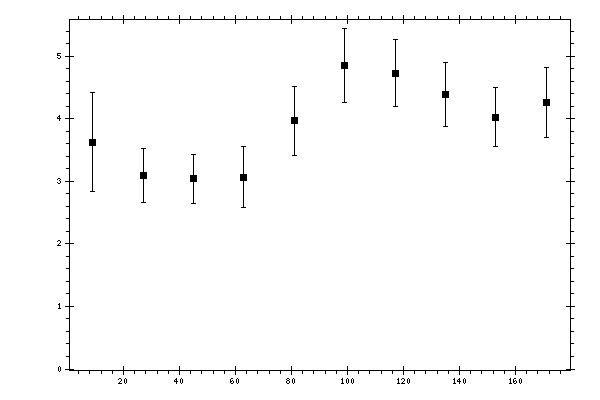

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.6247 | 0.2333 | 0.7522 | 0.7876 |
| 27 | 3.0969 | 0.1398 | 0.4062 | 0.4296 |
| 45 | 3.0446 | 0.1247 | 0.3711 | 0.3915 |
| 63 | 3.0681 | 0.1191 | 0.469 | 0.4839 |
| 81 | 3.9702 | 0.1899 | 0.519 | 0.5527 |
| 99 | 4.8477 | 0.2047 | 0.5509 | 0.5877 |
| 117 | 4.7272 | 0.1783 | 0.5083 | 0.5387 |
| 135 | 4.3863 | 0.1939 | 0.4669 | 0.5056 |
| 153 | 4.023 | 0.2105 | 0.4191 | 0.469 |
| 171 | 4.2656 | 0.3102 | 0.467 | 0.5606 |
