Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.75 — 1.775 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

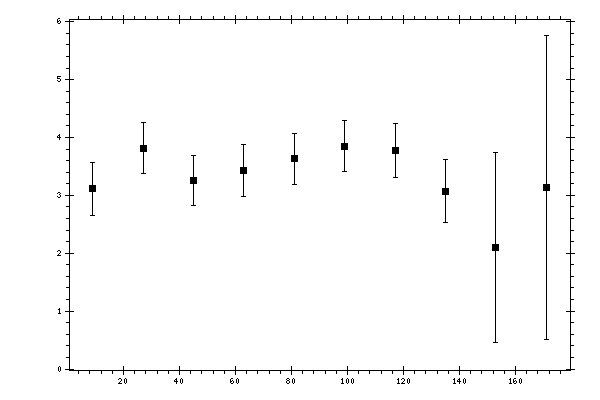

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.116 | 0.2714 | 0.3694 | 0.4584 |
| 27 | 3.8176 | 0.1474 | 0.4111 | 0.4367 |
| 45 | 3.2584 | 0.1714 | 0.3892 | 0.4253 |
| 63 | 3.4261 | 0.245 | 0.3784 | 0.4508 |
| 81 | 3.6302 | 0.158 | 0.4049 | 0.4346 |
| 99 | 3.8518 | 0.1397 | 0.4221 | 0.4447 |
| 117 | 3.7783 | 0.1685 | 0.436 | 0.4674 |
| 135 | 3.0722 | 0.1797 | 0.5109 | 0.5416 |
| 153 | 2.1008 | 0.1432 | 0.9357 | 1.637 |
| 171 | 3.1405 | 0.0035 | 1.8577 | 2.6242 |
