Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.775 — 1.8 GeV | |
| Ebeam : | 5.754 GeV |
|

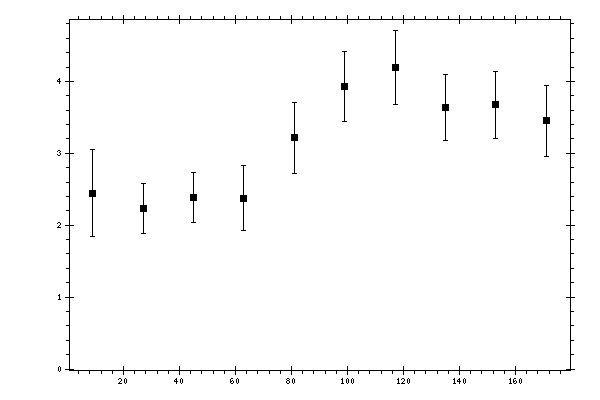

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.4448 | 0.1631 | 0.5824 | 0.6048 |
| 27 | 2.2321 | 0.1214 | 0.3193 | 0.3416 |
| 45 | 2.3853 | 0.1029 | 0.3266 | 0.3424 |
| 63 | 2.378 | 0.1463 | 0.4318 | 0.4559 |
| 81 | 3.2143 | 0.159 | 0.471 | 0.4971 |
| 99 | 3.9293 | 0.1692 | 0.4542 | 0.4847 |
| 117 | 4.1977 | 0.2045 | 0.4701 | 0.5126 |
| 135 | 3.6393 | 0.175 | 0.4256 | 0.4602 |
| 153 | 3.6736 | 0.2106 | 0.4103 | 0.4612 |
| 171 | 3.4494 | 0.2131 | 0.4516 | 0.4993 |
