Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.8 — 1.825 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

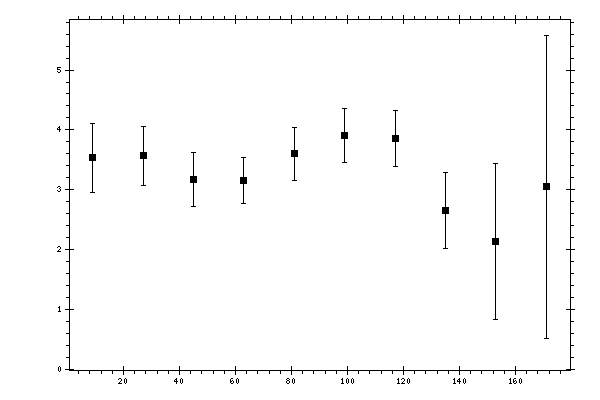

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.532 | 0.2173 | 0.4085 | 0.5768 |
| 27 | 3.5662 | 0.1524 | 0.3885 | 0.4923 |
| 45 | 3.1681 | 0.2099 | 0.3938 | 0.4463 |
| 63 | 3.1474 | 0.1228 | 0.3624 | 0.3826 |
| 81 | 3.5963 | 0.1575 | 0.4126 | 0.4416 |
| 99 | 3.906 | 0.1302 | 0.4301 | 0.4494 |
| 117 | 3.8522 | 0.1544 | 0.4445 | 0.4706 |
| 135 | 2.6515 | 0.1543 | 0.4465 | 0.6299 |
| 153 | 2.1325 | 0.1108 | 0.8726 | 1.3128 |
| 171 | 3.0488 | 0.0036 | 1.7912 | 2.5348 |
