Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.8 — 1.825 GeV | |
| Ebeam : | 5.754 GeV |
|

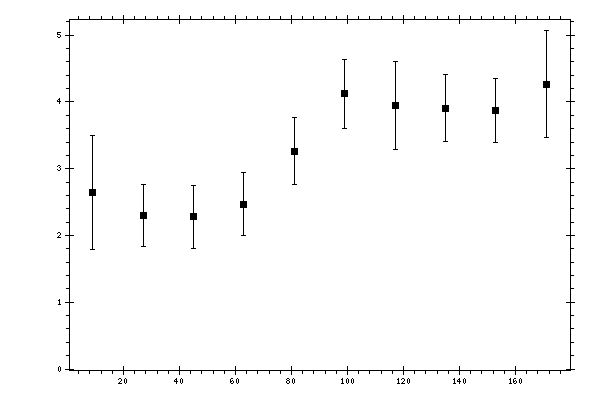

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.6381 | 0.1669 | 0.6014 | 0.8544 |
| 27 | 2.2993 | 0.1061 | 0.3292 | 0.4705 |
| 45 | 2.2785 | 0.113 | 0.3338 | 0.4715 |
| 63 | 2.4699 | 0.1338 | 0.4557 | 0.475 |
| 81 | 3.2611 | 0.1568 | 0.4782 | 0.5032 |
| 99 | 4.1228 | 0.1823 | 0.486 | 0.5191 |
| 117 | 3.9534 | 0.1712 | 0.469 | 0.6578 |
| 135 | 3.9044 | 0.1815 | 0.4696 | 0.5035 |
| 153 | 3.8715 | 0.1902 | 0.4395 | 0.4789 |
| 171 | 4.2693 | 0.2437 | 0.5606 | 0.795 |
