Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.825 — 1.85 GeV | |
| Ebeam : | 5.754 GeV |
|

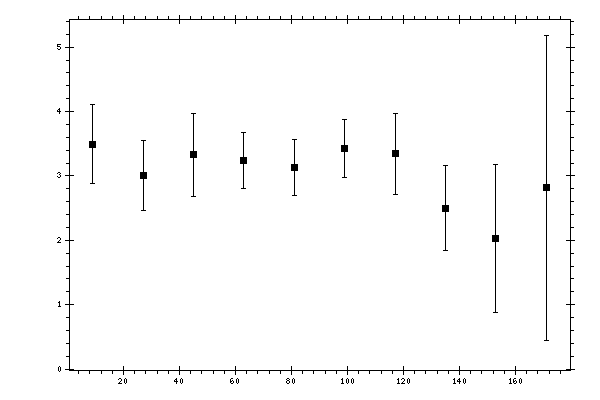

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.4909 | 0.2415 | 0.4366 | 0.6139 |
| 27 | 3.0092 | 0.1476 | 0.3802 | 0.5429 |
| 45 | 3.3254 | 0.2326 | 0.453 | 0.6404 |
| 63 | 3.237 | 0.133 | 0.4132 | 0.434 |
| 81 | 3.132 | 0.1315 | 0.411 | 0.4315 |
| 99 | 3.4231 | 0.1317 | 0.4316 | 0.4513 |
| 117 | 3.3449 | 0.1455 | 0.443 | 0.6283 |
| 135 | 2.499 | 0.1681 | 0.4634 | 0.6587 |
| 153 | 2.0229 | 0.1349 | 0.8128 | 1.1509 |
| 171 | 2.8162 | 0.0036 | 1.6763 | 2.3688 |
