Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.825 — 1.85 GeV | |
| Ebeam : | 5.754 GeV |
|

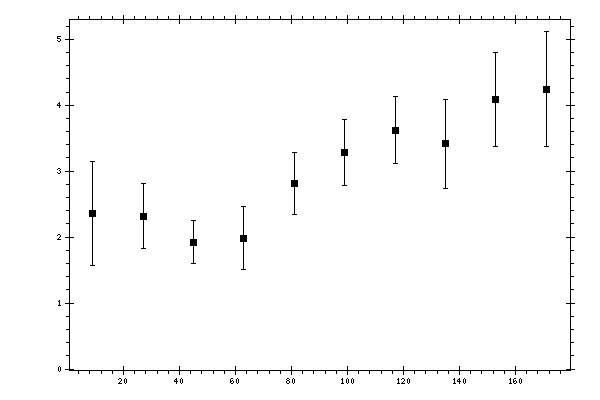

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.3558 | 0.1882 | 0.5558 | 0.7877 |
| 27 | 2.3189 | 0.1173 | 0.3482 | 0.4918 |
| 45 | 1.9253 | 0.0808 | 0.3209 | 0.3309 |
| 63 | 1.9862 | 0.2228 | 0.4218 | 0.477 |
| 81 | 2.8133 | 0.1264 | 0.4468 | 0.4643 |
| 99 | 3.2771 | 0.2404 | 0.4399 | 0.5013 |
| 117 | 3.6229 | 0.1546 | 0.4855 | 0.5095 |
| 135 | 3.4155 | 0.1461 | 0.4685 | 0.6751 |
| 153 | 4.0831 | 0.2029 | 0.5015 | 0.7102 |
| 171 | 4.2403 | 0.2595 | 0.614 | 0.8722 |
