Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.85 — 1.875 GeV | |
| Ebeam : | 5.754 GeV |
|

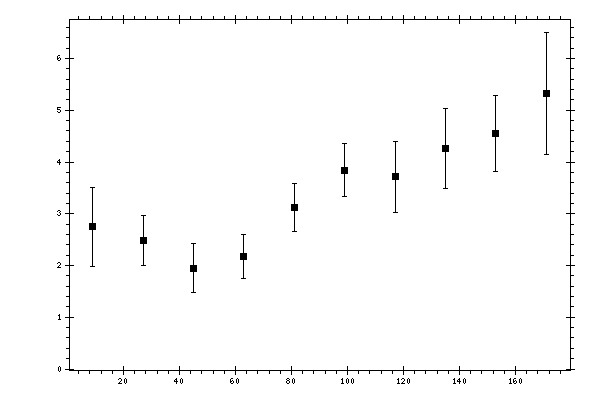

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.7505 | 0.1754 | 0.5399 | 0.7603 |
| 27 | 2.4876 | 0.1441 | 0.3401 | 0.4838 |
| 45 | 1.9478 | 0.1038 | 0.3146 | 0.4734 |
| 63 | 2.1751 | 0.1207 | 0.4052 | 0.4228 |
| 81 | 3.1203 | 0.1492 | 0.4393 | 0.4639 |
| 99 | 3.8458 | 0.1933 | 0.467 | 0.5055 |
| 117 | 3.7184 | 0.1525 | 0.4802 | 0.6879 |
| 135 | 4.256 | 0.2157 | 0.5452 | 0.7714 |
| 153 | 4.5453 | 0.2692 | 0.5152 | 0.7314 |
| 171 | 5.3203 | 0.2791 | 0.6624 | 1.1739 |
