Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.875 — 1.9 GeV | |
| Ebeam : | 5.754 GeV |
|

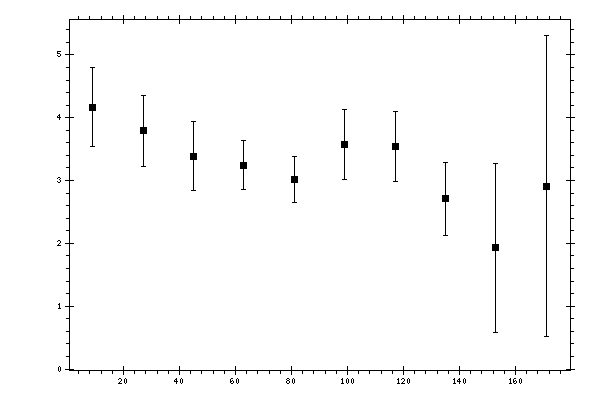

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 4.1691 | 0.2125 | 0.4405 | 0.6244 |
| 27 | 3.7916 | 0.175 | 0.3958 | 0.5663 |
| 45 | 3.3897 | 0.2229 | 0.394 | 0.5564 |
| 63 | 3.2442 | 0.1338 | 0.363 | 0.3869 |
| 81 | 3.0216 | 0.1209 | 0.3482 | 0.3686 |
| 99 | 3.5711 | 0.1188 | 0.3881 | 0.5565 |
| 117 | 3.5441 | 0.1426 | 0.397 | 0.5583 |
| 135 | 2.707 | 0.1465 | 0.4057 | 0.5743 |
| 153 | 1.9316 | 0.1477 | 0.7039 | 1.3463 |
| 171 | 2.9123 | 0.0059 | 1.6917 | 2.4025 |
