Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.875 — 1.9 GeV | |
| Ebeam : | 5.754 GeV |
|

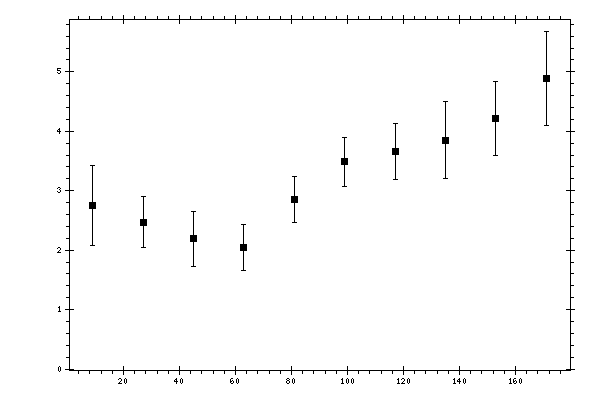

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.7514 | 0.1614 | 0.4788 | 0.6719 |
| 27 | 2.4723 | 0.1109 | 0.2986 | 0.4239 |
| 45 | 2.1901 | 0.1096 | 0.3171 | 0.4646 |
| 63 | 2.0416 | 0.1254 | 0.3623 | 0.3834 |
| 81 | 2.8537 | 0.1477 | 0.3557 | 0.3852 |
| 99 | 3.488 | 0.1483 | 0.3818 | 0.4096 |
| 117 | 3.6589 | 0.1282 | 0.4522 | 0.47 |
| 135 | 3.8498 | 0.1671 | 0.4569 | 0.6463 |
| 153 | 4.2154 | 0.1955 | 0.4349 | 0.6298 |
| 171 | 4.8843 | 0.2604 | 0.5534 | 0.7876 |
