Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.9 — 1.925 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

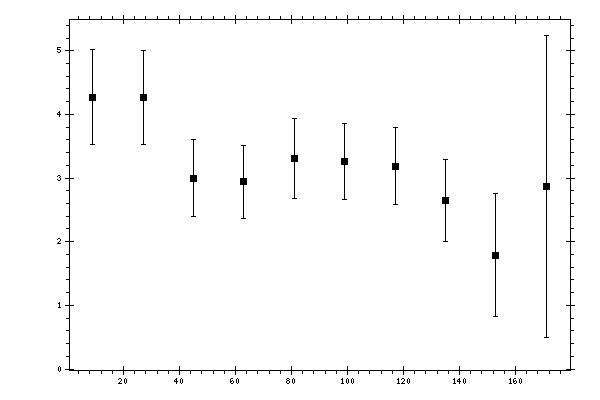

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 4.2713 | 0.2682 | 0.5258 | 0.7453 |
| 27 | 4.2704 | 0.215 | 0.5221 | 0.7404 |
| 45 | 3.0006 | 0.2136 | 0.4259 | 0.6078 |
| 63 | 2.9388 | 0.1226 | 0.4006 | 0.568 |
| 81 | 3.3073 | 0.1768 | 0.4408 | 0.6276 |
| 99 | 3.2578 | 0.1031 | 0.4275 | 0.6015 |
| 117 | 3.1851 | 0.128 | 0.4275 | 0.6049 |
| 135 | 2.6415 | 0.1787 | 0.4538 | 0.6452 |
| 153 | 1.7893 | 0.1491 | 0.6857 | 0.9721 |
| 171 | 2.8671 | 0.0811 | 1.6835 | 2.3791 |
