Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.925 — 1.95 GeV | |
| Ebeam : | 5.754 GeV |
|

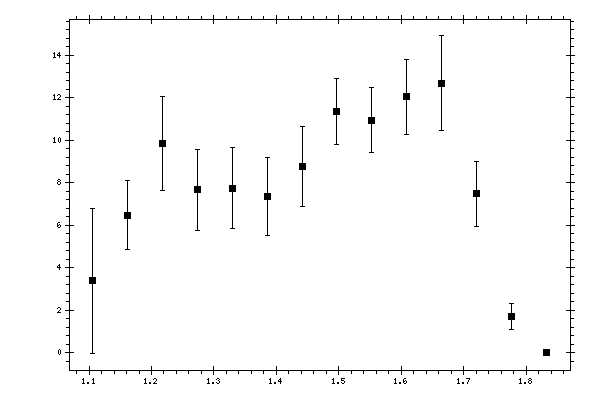

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.105792 | 3.3833 | 0.3617 | 0.5612 | 3.4083 |
| 1.161691 | 6.4681 | 0.3679 | 1.1405 | 1.6182 |
| 1.21759 | 9.8429 | 0.4959 | 1.5749 | 2.2279 |
| 1.273489 | 7.6597 | 0.3921 | 1.3408 | 1.8971 |
| 1.329388 | 7.7435 | 0.3529 | 1.3544 | 1.9143 |
| 1.385287 | 7.3469 | 0.333 | 1.2973 | 1.8316 |
| 1.441186 | 8.7604 | 0.4671 | 1.3234 | 1.8742 |
| 1.497086 | 11.3584 | 0.5997 | 1.4234 | 1.5446 |
| 1.552985 | 10.9402 | 0.5823 | 1.4005 | 1.5167 |
| 1.608884 | 12.0278 | 0.8325 | 1.5334 | 1.7448 |
| 1.664783 | 12.6776 | 0.6334 | 1.5727 | 2.2246 |
| 1.720682 | 7.4643 | 0.7891 | 1.0976 | 1.5473 |
| 1.776581 | 1.7056 | 0.1594 | 0.4321 | 0.6162 |
| 1.83248 | 0.0024 | 0 | 0.0014 | 0.0014 |
