Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.925 — 1.95 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

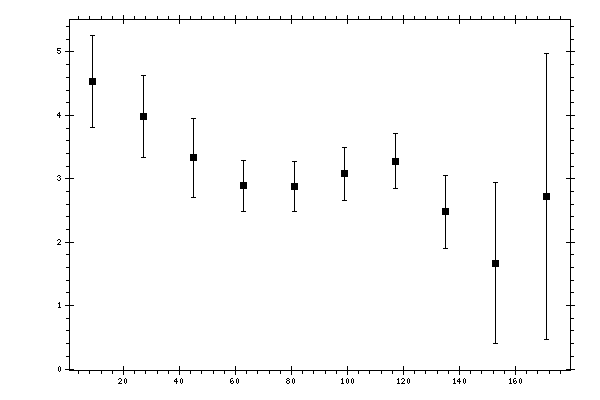

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 4.5331 | 0.2189 | 0.5004 | 0.7282 |
| 27 | 3.9849 | 0.1853 | 0.4497 | 0.6471 |
| 45 | 3.3311 | 0.2147 | 0.432 | 0.62 |
| 63 | 2.8898 | 0.1524 | 0.3734 | 0.4033 |
| 81 | 2.8798 | 0.1214 | 0.3748 | 0.3939 |
| 99 | 3.0777 | 0.1655 | 0.3886 | 0.4223 |
| 117 | 3.2765 | 0.1196 | 0.4135 | 0.4305 |
| 135 | 2.4771 | 0.1373 | 0.4093 | 0.5774 |
| 153 | 1.6663 | 0.0995 | 0.6312 | 1.2678 |
| 171 | 2.7188 | 0.0062 | 1.5937 | 2.2556 |
