Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.925 — 1.95 GeV | |
| Ebeam : | 5.754 GeV |
|

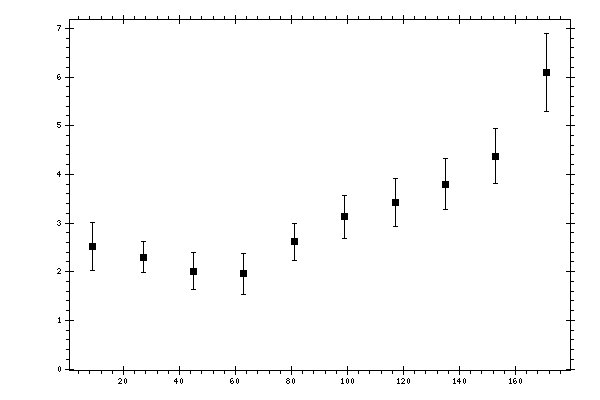

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.5204 | 0.1567 | 0.461 | 0.4869 |
| 27 | 2.3011 | 0.1056 | 0.3019 | 0.3198 |
| 45 | 2.0108 | 0.1004 | 0.3632 | 0.3768 |
| 63 | 1.9609 | 0.1111 | 0.4062 | 0.4211 |
| 81 | 2.6146 | 0.1543 | 0.3488 | 0.3814 |
| 99 | 3.1248 | 0.1266 | 0.4149 | 0.4338 |
| 117 | 3.4158 | 0.1408 | 0.4704 | 0.491 |
| 135 | 3.8022 | 0.1824 | 0.4857 | 0.5188 |
| 153 | 4.3768 | 0.2181 | 0.5164 | 0.5606 |
| 171 | 6.0969 | 0.3579 | 0.7242 | 0.8078 |
