Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.95 — 1.975 GeV | |
| Ebeam : | 5.754 GeV |
|

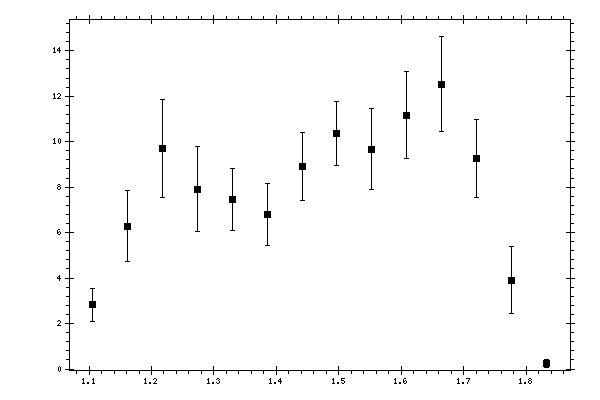

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.105792 | 2.8234 | 0.2966 | 0.5189 | 0.7322 |
| 1.161691 | 6.2792 | 0.391 | 1.1039 | 1.5591 |
| 1.21759 | 9.7211 | 0.536 | 1.5151 | 2.1575 |
| 1.273489 | 7.9126 | 0.5739 | 1.3254 | 1.8733 |
| 1.329388 | 7.4558 | 0.455 | 1.2679 | 1.3471 |
| 1.385287 | 6.7948 | 0.6384 | 1.1843 | 1.3454 |
| 1.441186 | 8.9136 | 0.8219 | 1.2607 | 1.5049 |
| 1.497086 | 10.3445 | 0.5525 | 1.2949 | 1.4079 |
| 1.552985 | 9.6646 | 0.5283 | 1.2527 | 1.7756 |
| 1.608884 | 11.1714 | 0.6492 | 1.3446 | 1.9048 |
| 1.664783 | 12.5307 | 0.5019 | 1.4845 | 2.0976 |
| 1.720682 | 9.258 | 0.7193 | 1.2142 | 1.7208 |
| 1.776581 | 3.9075 | 0.287 | 0.701 | 1.4655 |
| 1.83248 | 0.2456 | 0.0262 | 0.104 | 0.1635 |
