Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.975 — 2 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

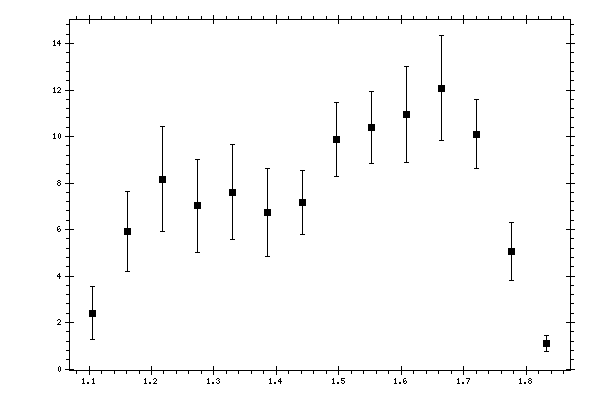

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.105792 | 2.3954 | 0.2164 | 0.5356 | 1.1401 |
| 1.161691 | 5.9135 | 0.404 | 1.2101 | 1.7141 |
| 1.21759 | 8.1623 | 0.5247 | 1.5972 | 2.2641 |
| 1.273489 | 7.0134 | 0.4421 | 1.4245 | 2.0129 |
| 1.329388 | 7.6059 | 0.4624 | 1.4484 | 2.0441 |
| 1.385287 | 6.7414 | 0.3952 | 1.3382 | 1.8904 |
| 1.441186 | 7.1555 | 0.3488 | 1.3291 | 1.3741 |
| 1.497086 | 9.8819 | 0.5492 | 1.4912 | 1.5892 |
| 1.552985 | 10.3855 | 0.5654 | 1.4534 | 1.5595 |
| 1.608884 | 10.9425 | 0.5748 | 1.4624 | 2.0698 |
| 1.664783 | 12.0734 | 0.5967 | 1.5994 | 2.26 |
| 1.720682 | 10.1068 | 0.5613 | 1.3893 | 1.4984 |
| 1.776581 | 5.0533 | 0.3815 | 0.8857 | 1.2566 |
| 1.83248 | 1.1149 | 0.1014 | 0.3284 | 0.3437 |
