Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.975 — 2 GeV | |
| Ebeam : | 5.754 GeV |
|

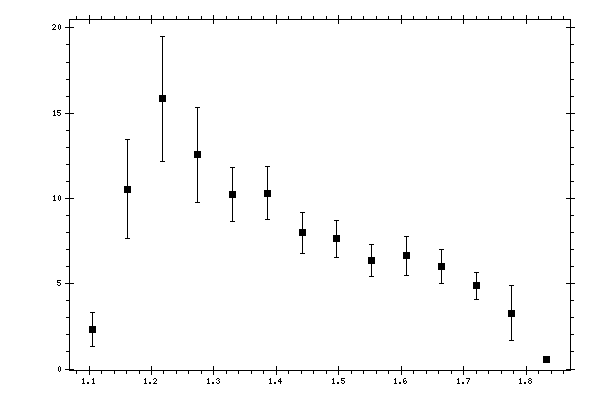

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.105792 | 2.3367 | 0.1585 | 0.7004 | 0.9963 |
| 1.161691 | 10.5498 | 0.4927 | 2.0573 | 2.9133 |
| 1.21759 | 15.8417 | 0.7668 | 2.5896 | 3.6673 |
| 1.273489 | 12.5635 | 0.6502 | 1.9699 | 2.779 |
| 1.329388 | 10.2163 | 0.4831 | 1.5216 | 1.5965 |
| 1.385287 | 10.2956 | 0.6555 | 1.4109 | 1.5558 |
| 1.441186 | 7.9746 | 0.372 | 1.118 | 1.1782 |
| 1.497086 | 7.6242 | 0.4181 | 1.0156 | 1.0983 |
| 1.552985 | 6.3669 | 0.3296 | 0.8661 | 0.9267 |
| 1.608884 | 6.6387 | 0.3712 | 0.8088 | 1.1385 |
| 1.664783 | 5.9875 | 0.3029 | 0.7034 | 0.9944 |
| 1.720682 | 4.8685 | 0.2581 | 0.5541 | 0.7864 |
| 1.776581 | 3.276 | 0.272 | 0.4043 | 1.6232 |
| 1.83248 | 0.5674 | 0.072 | 0.1431 | 0.1601 |
