Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 2 — 2.025 GeV | |
| Ebeam : | 5.754 GeV |
|

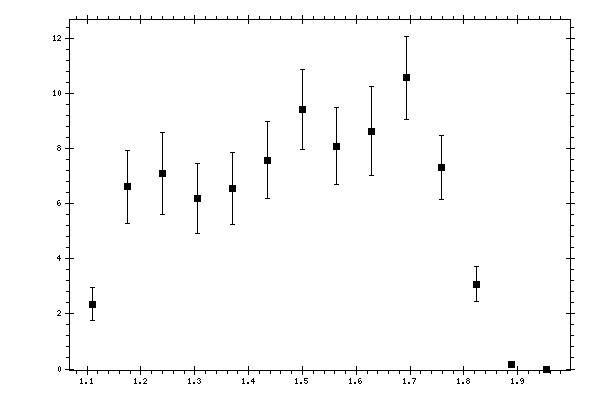

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.110256 | 2.3574 | 0.2516 | 0.5337 | 0.59 |
| 1.175084 | 6.6052 | 0.3907 | 1.2746 | 1.3331 |
| 1.239911 | 7.1062 | 0.476 | 1.4103 | 1.4884 |
| 1.304739 | 6.1859 | 0.332 | 1.2369 | 1.2807 |
| 1.369567 | 6.5634 | 0.3337 | 1.2623 | 1.3057 |
| 1.434394 | 7.581 | 0.5104 | 1.2925 | 1.3896 |
| 1.499222 | 9.4138 | 0.5371 | 1.3637 | 1.4657 |
| 1.56405 | 8.0887 | 0.7052 | 1.2042 | 1.3955 |
| 1.628878 | 8.6352 | 1.1081 | 1.1788 | 1.6179 |
| 1.693705 | 10.5649 | 0.4873 | 1.4144 | 1.496 |
| 1.758533 | 7.3216 | 0.4269 | 1.0781 | 1.1596 |
| 1.823361 | 3.081 | 0.2466 | 0.5942 | 0.6433 |
| 1.888188 | 0.1797 | 0.0235 | 0.0761 | 0.0797 |
| 1.953016 | 0 | 0 | 0 | 0 |
