Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 2.025 — 2.05 GeV | |
| Ebeam : | 5.754 GeV |
|

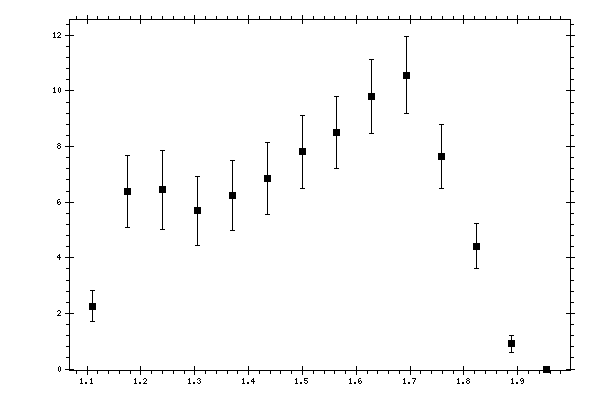

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.110256 | 2.262 | 0.2075 | 0.5134 | 0.5538 |
| 1.175084 | 6.3947 | 0.4314 | 1.2173 | 1.2915 |
| 1.239911 | 6.4407 | 0.4347 | 1.3448 | 1.4133 |
| 1.304739 | 5.6832 | 0.3119 | 1.2021 | 1.2419 |
| 1.369567 | 6.2245 | 0.2918 | 1.2237 | 1.258 |
| 1.434394 | 6.8445 | 0.4065 | 1.2367 | 1.3018 |
| 1.499222 | 7.8124 | 0.3917 | 1.2475 | 1.3075 |
| 1.56405 | 8.5068 | 0.5246 | 1.1993 | 1.309 |
| 1.628878 | 9.8016 | 0.5085 | 1.2133 | 1.3156 |
| 1.693705 | 10.5679 | 0.4874 | 1.297 | 1.3856 |
| 1.758533 | 7.6436 | 0.467 | 1.0382 | 1.1384 |
| 1.823361 | 4.4232 | 0.3369 | 0.7247 | 0.7992 |
| 1.888188 | 0.9066 | 0.1833 | 0.2395 | 0.3016 |
| 1.953016 | 0 | 0 | 0 | 0 |
