Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 2.025 — 2.05 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

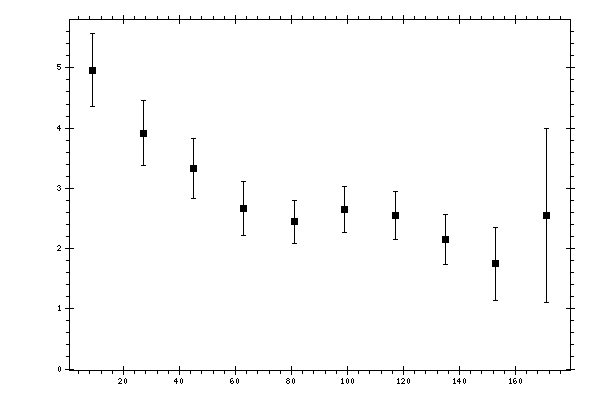

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 4.9642 | 0.2356 | 0.5598 | 0.6073 |
| 27 | 3.9124 | 0.1885 | 0.5039 | 0.538 |
| 45 | 3.3338 | 0.1886 | 0.4606 | 0.4977 |
| 63 | 2.6718 | 0.1649 | 0.416 | 0.4474 |
| 81 | 2.4414 | 0.0879 | 0.3534 | 0.3641 |
| 99 | 2.6479 | 0.0983 | 0.3752 | 0.3879 |
| 117 | 2.5519 | 0.1151 | 0.3815 | 0.3985 |
| 135 | 2.1526 | 0.1209 | 0.3914 | 0.4097 |
| 153 | 1.7468 | 0.161 | 0.5802 | 0.6021 |
| 171 | 2.5418 | 0.0659 | 1.4438 | 1.4453 |
