Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 2.025 — 2.05 GeV | |
| Ebeam : | 5.754 GeV |
|

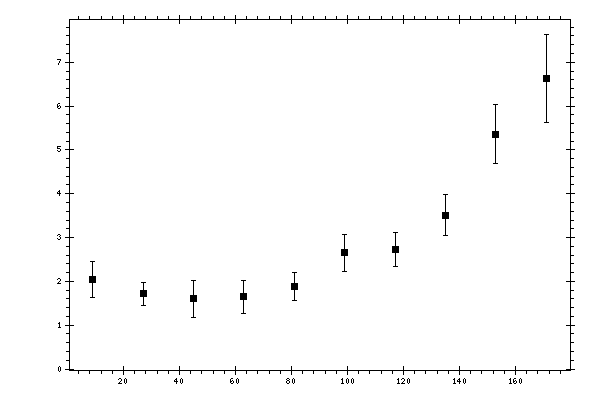

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.0478 | 0.1366 | 0.381 | 0.4048 |
| 27 | 1.7202 | 0.0848 | 0.2506 | 0.2645 |
| 45 | 1.5989 | 0.0936 | 0.4194 | 0.4297 |
| 63 | 1.6491 | 0.095 | 0.3626 | 0.3748 |
| 81 | 1.8813 | 0.0976 | 0.307 | 0.3221 |
| 99 | 2.6516 | 0.1252 | 0.4067 | 0.4256 |
| 117 | 2.7262 | 0.1192 | 0.378 | 0.3963 |
| 135 | 3.51 | 0.1512 | 0.4456 | 0.4705 |
| 153 | 5.3615 | 0.2171 | 0.6311 | 0.6674 |
| 171 | 6.6291 | 0.6008 | 0.8142 | 1.0119 |
