Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 2.05 — 2.075 GeV | |
| Ebeam : | 5.754 GeV |
|

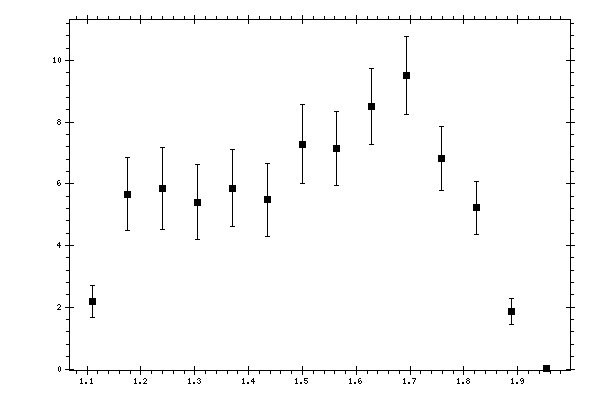

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.110256 | 2.1871 | 0.1679 | 0.4938 | 0.5215 |
| 1.175084 | 5.6681 | 0.3598 | 1.1374 | 1.193 |
| 1.239911 | 5.8617 | 0.3625 | 1.2838 | 1.334 |
| 1.304739 | 5.4145 | 0.2908 | 1.1715 | 1.207 |
| 1.369567 | 5.8599 | 0.373 | 1.1943 | 1.2512 |
| 1.434394 | 5.4901 | 0.3147 | 1.1425 | 1.1851 |
| 1.499222 | 7.2921 | 0.3875 | 1.2112 | 1.2717 |
| 1.56405 | 7.1509 | 0.4988 | 1.1024 | 1.2099 |
| 1.628878 | 8.5045 | 0.523 | 1.1229 | 1.2387 |
| 1.693705 | 9.5088 | 0.4565 | 1.1842 | 1.2691 |
| 1.758533 | 6.8279 | 0.3463 | 0.9786 | 1.0381 |
| 1.823361 | 5.2208 | 0.3591 | 0.7947 | 0.8721 |
| 1.888188 | 1.8546 | 0.168 | 0.3904 | 0.425 |
| 1.953016 | 0.0222 | 0.0042 | 0.0112 | 0.012 |
