Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 2.05 — 2.075 GeV | |
| Ebeam : | 5.754 GeV |
|

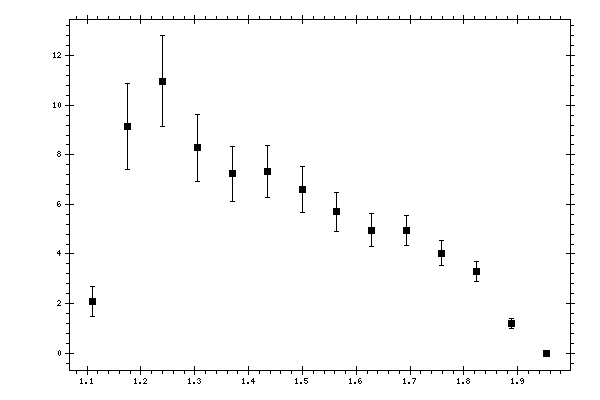

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.110256 | 2.0816 | 0.1375 | 0.6051 | 0.6206 |
| 1.175084 | 9.1428 | 0.4576 | 1.6855 | 1.7465 |
| 1.239911 | 10.9638 | 0.5167 | 1.7622 | 1.8364 |
| 1.304739 | 8.2808 | 0.4067 | 1.2929 | 1.3554 |
| 1.369567 | 7.2299 | 0.3502 | 1.0592 | 1.1156 |
| 1.434394 | 7.3298 | 0.3704 | 0.9839 | 1.0513 |
| 1.499222 | 6.6084 | 0.3885 | 0.85 | 0.9345 |
| 1.56405 | 5.7012 | 0.3073 | 0.7251 | 0.7875 |
| 1.628878 | 4.96 | 0.2673 | 0.6077 | 0.6639 |
| 1.693705 | 4.9357 | 0.2536 | 0.5529 | 0.6083 |
| 1.758533 | 4.0377 | 0.2551 | 0.4408 | 0.5093 |
| 1.823361 | 3.2993 | 0.2063 | 0.362 | 0.4167 |
| 1.888188 | 1.2118 | 0.1068 | 0.1694 | 0.2002 |
| 1.953016 | 0.0003 | 0.0008 | 0.0002 | 0.0008 |
