Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 2.05 — 2.075 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

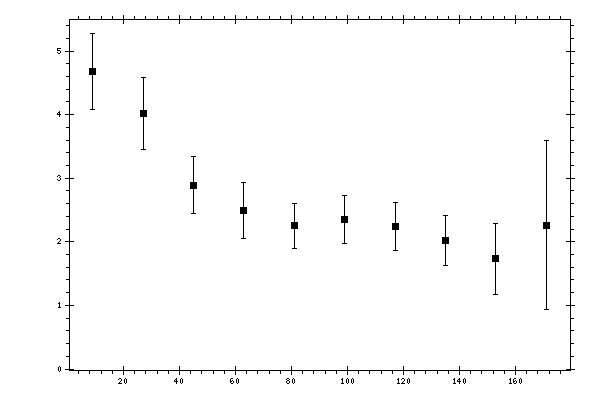

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 4.678 | 0.2278 | 0.5479 | 0.5934 |
| 27 | 4.0186 | 0.2166 | 0.5292 | 0.5718 |
| 45 | 2.8918 | 0.1554 | 0.4249 | 0.4524 |
| 63 | 2.4893 | 0.1546 | 0.4137 | 0.4416 |
| 81 | 2.2499 | 0.1016 | 0.3416 | 0.3564 |
| 99 | 2.3489 | 0.0952 | 0.3612 | 0.3735 |
| 117 | 2.245 | 0.0921 | 0.3656 | 0.377 |
| 135 | 2.0159 | 0.1088 | 0.3768 | 0.3922 |
| 153 | 1.7302 | 0.1085 | 0.5491 | 0.5597 |
| 171 | 2.2627 | 0.0064 | 1.3322 | 1.3322 |
