Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 2.05 — 2.075 GeV | |
| Ebeam : | 5.754 GeV |
|

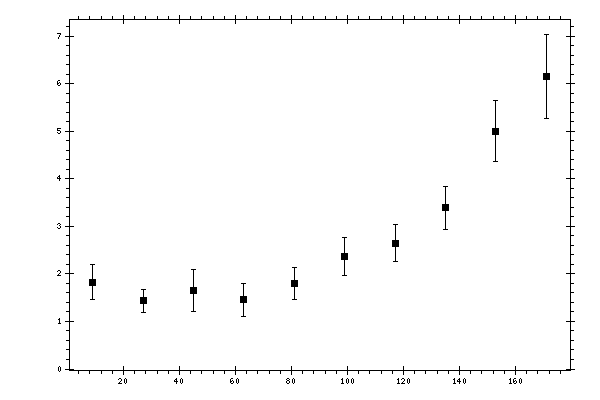

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.8264 | 0.1222 | 0.3521 | 0.3728 |
| 27 | 1.4358 | 0.0802 | 0.2291 | 0.2427 |
| 45 | 1.6451 | 0.0886 | 0.4342 | 0.4431 |
| 63 | 1.4528 | 0.0806 | 0.3322 | 0.3419 |
| 81 | 1.8037 | 0.0993 | 0.3172 | 0.3324 |
| 99 | 2.362 | 0.1086 | 0.3864 | 0.4014 |
| 117 | 2.646 | 0.1221 | 0.3678 | 0.3875 |
| 135 | 3.3869 | 0.1366 | 0.4306 | 0.4518 |
| 153 | 5.0027 | 0.2023 | 0.6125 | 0.6451 |
| 171 | 6.1558 | 0.3638 | 0.8113 | 0.8892 |
