Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 2.075 — 2.1 GeV | |
| Ebeam : | 5.754 GeV |
|

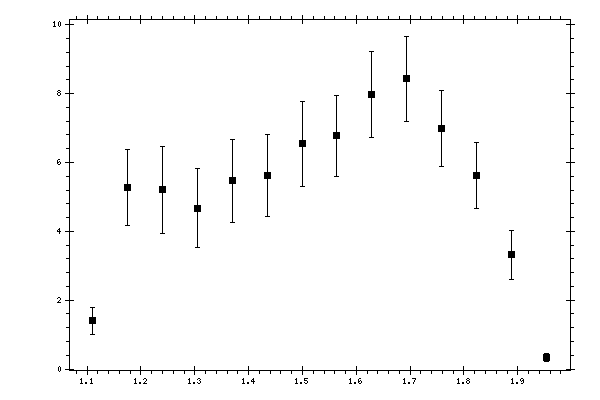

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.110256 | 1.398 | 0.1122 | 0.3862 | 0.4021 |
| 1.175084 | 5.2736 | 0.2779 | 1.0792 | 1.1144 |
| 1.239911 | 5.2064 | 0.2799 | 1.2245 | 1.2561 |
| 1.304739 | 4.6761 | 0.2616 | 1.1075 | 1.138 |
| 1.369567 | 5.4672 | 0.3093 | 1.1696 | 1.2098 |
| 1.434394 | 5.6219 | 0.3095 | 1.1566 | 1.1973 |
| 1.499222 | 6.5395 | 0.3718 | 1.1868 | 1.2437 |
| 1.56405 | 6.7694 | 0.4408 | 1.1001 | 1.1852 |
| 1.628878 | 7.9767 | 0.4746 | 1.1631 | 1.2562 |
| 1.693705 | 8.4258 | 0.4634 | 1.1509 | 1.2407 |
| 1.758533 | 6.9868 | 0.3304 | 1.045 | 1.096 |
| 1.823361 | 5.6263 | 0.3744 | 0.8748 | 0.9516 |
| 1.888188 | 3.3126 | 0.3876 | 0.6047 | 0.7183 |
| 1.953016 | 0.3351 | 0.0423 | 0.1206 | 0.1278 |
