Parameter (X axis): W, GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: σ, mcb
Cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.4 — 2 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): σ, mcb
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.

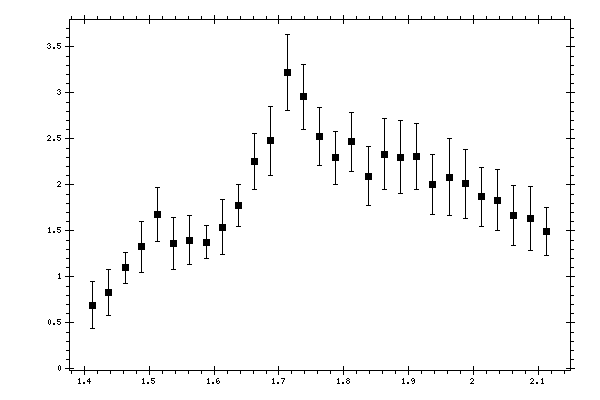

Measured data:
|
W,
GeV |
σ,
mcb |
Total error,
mcb |
|---|---|---|
| 1.4125 | 0.6952 | 0.2511 |
| 1.4375 | 0.8286 | 0.2528 |
| 1.4625 | 1.0995 | 0.1666 |
| 1.4875 | 1.3274 | 0.2776 |
| 1.5125 | 1.6779 | 0.2904 |
| 1.5375 | 1.3638 | 0.2823 |
| 1.5625 | 1.3979 | 0.2666 |
| 1.5875 | 1.3778 | 0.1789 |
| 1.6125 | 1.5419 | 0.3004 |
| 1.6375 | 1.7792 | 0.2262 |
| 1.6625 | 2.255 | 0.3067 |
| 1.6875 | 2.4793 | 0.3776 |
| 1.7125 | 3.2179 | 0.4141 |
| 1.7375 | 2.9564 | 0.3557 |
| 1.7625 | 2.5289 | 0.3154 |
| 1.7875 | 2.2959 | 0.288 |
| 1.8125 | 2.4671 | 0.3184 |
| 1.8375 | 2.0965 | 0.3189 |
| 1.8625 | 2.3337 | 0.3859 |
| 1.8875 | 2.2987 | 0.397 |
| 1.9125 | 2.3092 | 0.3589 |
| 1.9375 | 2.0075 | 0.3279 |
| 1.9625 | 2.0855 | 0.4229 |
| 1.9875 | 2.0102 | 0.3766 |
| 2.0125 | 1.8705 | 0.3217 |
| 2.0375 | 1.8349 | 0.3351 |
| 2.0625 | 1.6706 | 0.3238 |
| 2.0875 | 1.6359 | 0.3514 |
| 2.1125 | 1.4918 | 0.2589 |
