Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 2.075 — 2.1 GeV | |
| Ebeam : | 5.754 GeV |
|

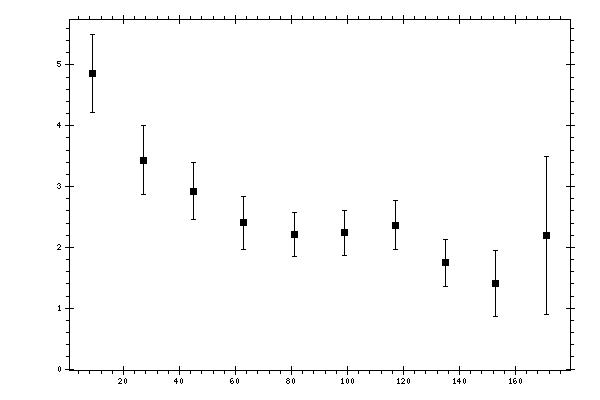

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 4.8644 | 0.2265 | 0.5994 | 0.6408 |
| 27 | 3.4344 | 0.2068 | 0.5218 | 0.5613 |
| 45 | 2.9261 | 0.1476 | 0.4491 | 0.4727 |
| 63 | 2.4037 | 0.1292 | 0.4197 | 0.4391 |
| 81 | 2.2157 | 0.0937 | 0.3485 | 0.3609 |
| 99 | 2.2422 | 0.0839 | 0.359 | 0.3687 |
| 117 | 2.3638 | 0.1213 | 0.3857 | 0.4043 |
| 135 | 1.7454 | 0.1053 | 0.368 | 0.3828 |
| 153 | 1.3991 | 0.0956 | 0.5326 | 0.5411 |
| 171 | 2.1979 | 0.0189 | 1.302 | 1.3022 |
