Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 2.075 — 2.1 GeV | |
| Ebeam : | 5.754 GeV |
|

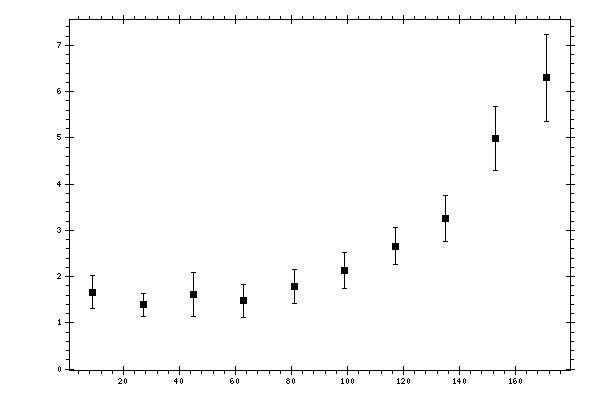

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.6589 | 0.1137 | 0.3355 | 0.3543 |
| 27 | 1.3864 | 0.0823 | 0.2391 | 0.2529 |
| 45 | 1.6109 | 0.1084 | 0.4602 | 0.4728 |
| 63 | 1.476 | 0.1028 | 0.3396 | 0.3548 |
| 81 | 1.779 | 0.1123 | 0.3468 | 0.3645 |
| 99 | 2.124 | 0.1121 | 0.3695 | 0.3862 |
| 117 | 2.6596 | 0.1224 | 0.3776 | 0.3969 |
| 135 | 3.2514 | 0.2091 | 0.4445 | 0.4912 |
| 153 | 4.9793 | 0.2355 | 0.649 | 0.6905 |
| 171 | 6.3002 | 0.3387 | 0.8785 | 0.9416 |
