Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 2.1 — 2.125 GeV | |
| Ebeam : | 5.754 GeV |
|

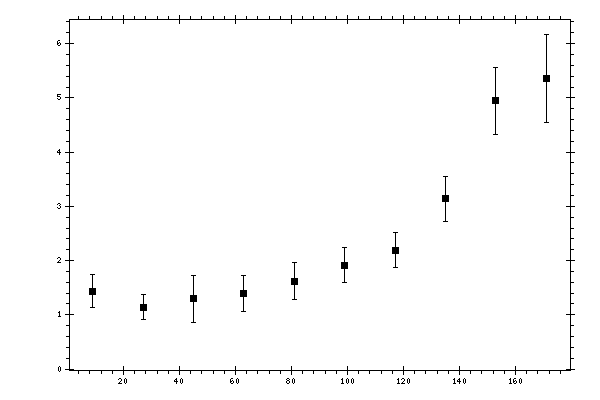

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.43 | 0.1082 | 0.2841 | 0.304 |
| 27 | 1.1422 | 0.0765 | 0.2094 | 0.223 |
| 45 | 1.2978 | 0.074 | 0.4266 | 0.433 |
| 63 | 1.396 | 0.0956 | 0.3167 | 0.3309 |
| 81 | 1.6162 | 0.0916 | 0.3281 | 0.3406 |
| 99 | 1.9142 | 0.0929 | 0.3082 | 0.3219 |
| 117 | 2.1934 | 0.1297 | 0.2968 | 0.3239 |
| 135 | 3.1377 | 0.139 | 0.3855 | 0.4098 |
| 153 | 4.9424 | 0.1842 | 0.5892 | 0.6173 |
| 171 | 5.3539 | 0.2819 | 0.7666 | 0.8168 |
